Technical drafting · US & UK projects

Window & door
shop drawings.
Clear in every detail.

Detailed CAD drawings and technical support for window suppliers, manufacturers and architects. We also help source and supply high-quality windows and doors for your project.

View drawing samples

Elevations · Sections · Details

SELF WINDOWS / TECHNICAL DRAFTING ILLUSTRATION

12+ years in the window industry Experience with US clients CAD & PDF deliverables

From technical drawings to the right products.

01 / SHOP DRAWINGS

Window & door shop drawings

Project elevations, sections and installation details, with CAD and PDF deliverables. Technical support and revisions throughout the drawing process.

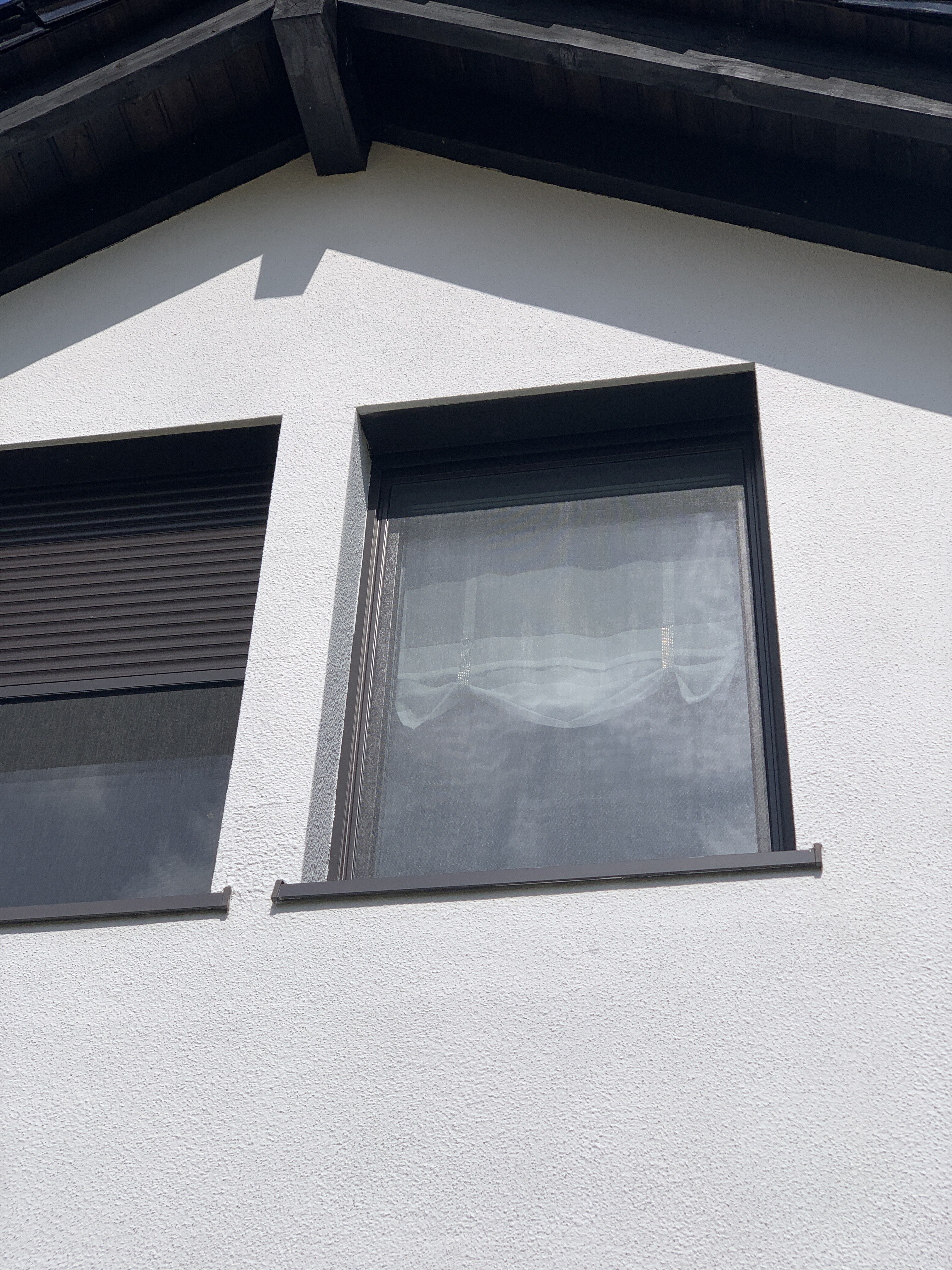

02 / WINDOW & DOOR SUPPLY

Quotation, selection & supply

Looking for windows and doors for your project? We can prepare a quotation, help select suitable systems and arrange the supply of high-quality products from European manufacturers.

03 / INSECT SCREENS

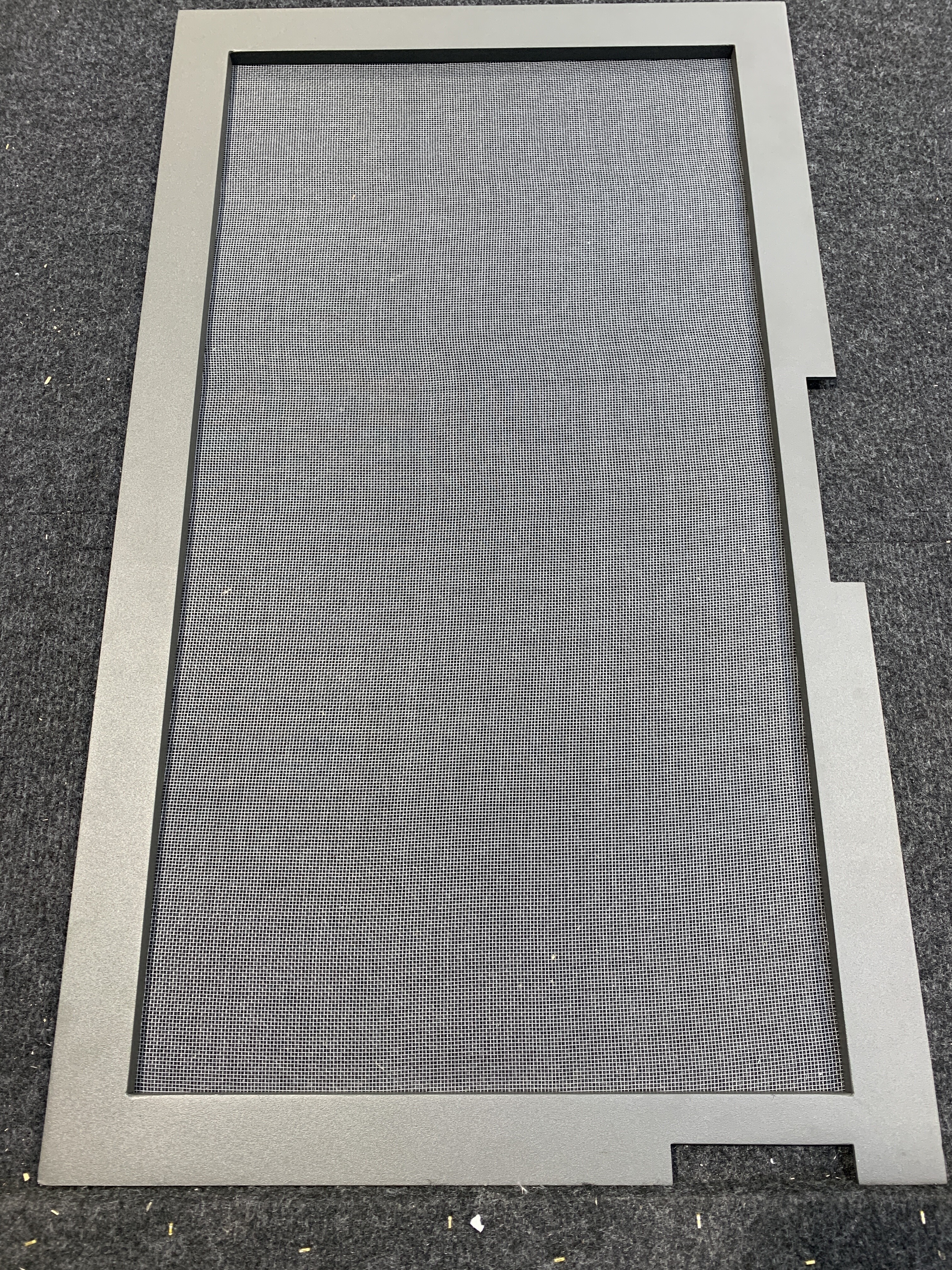

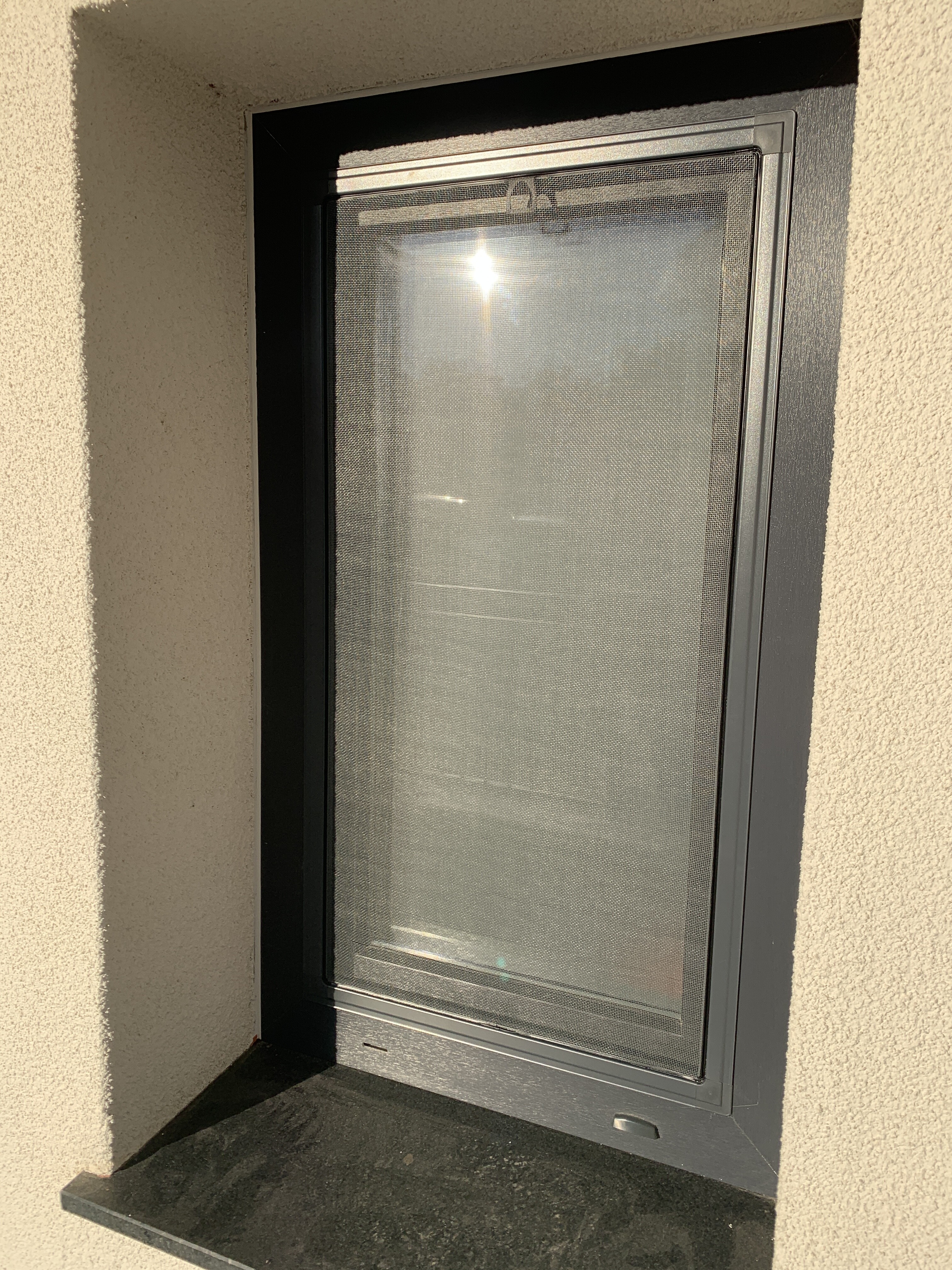

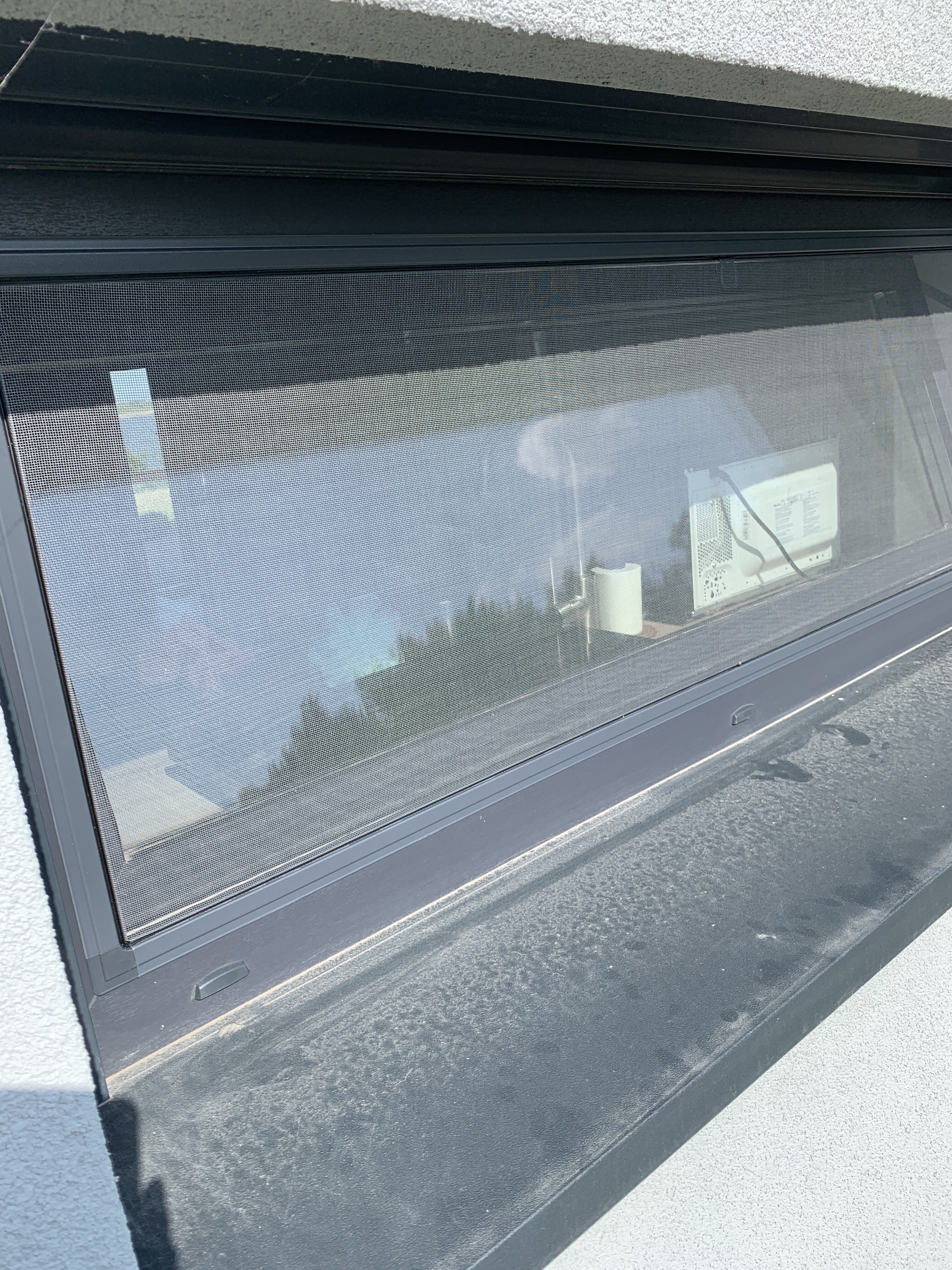

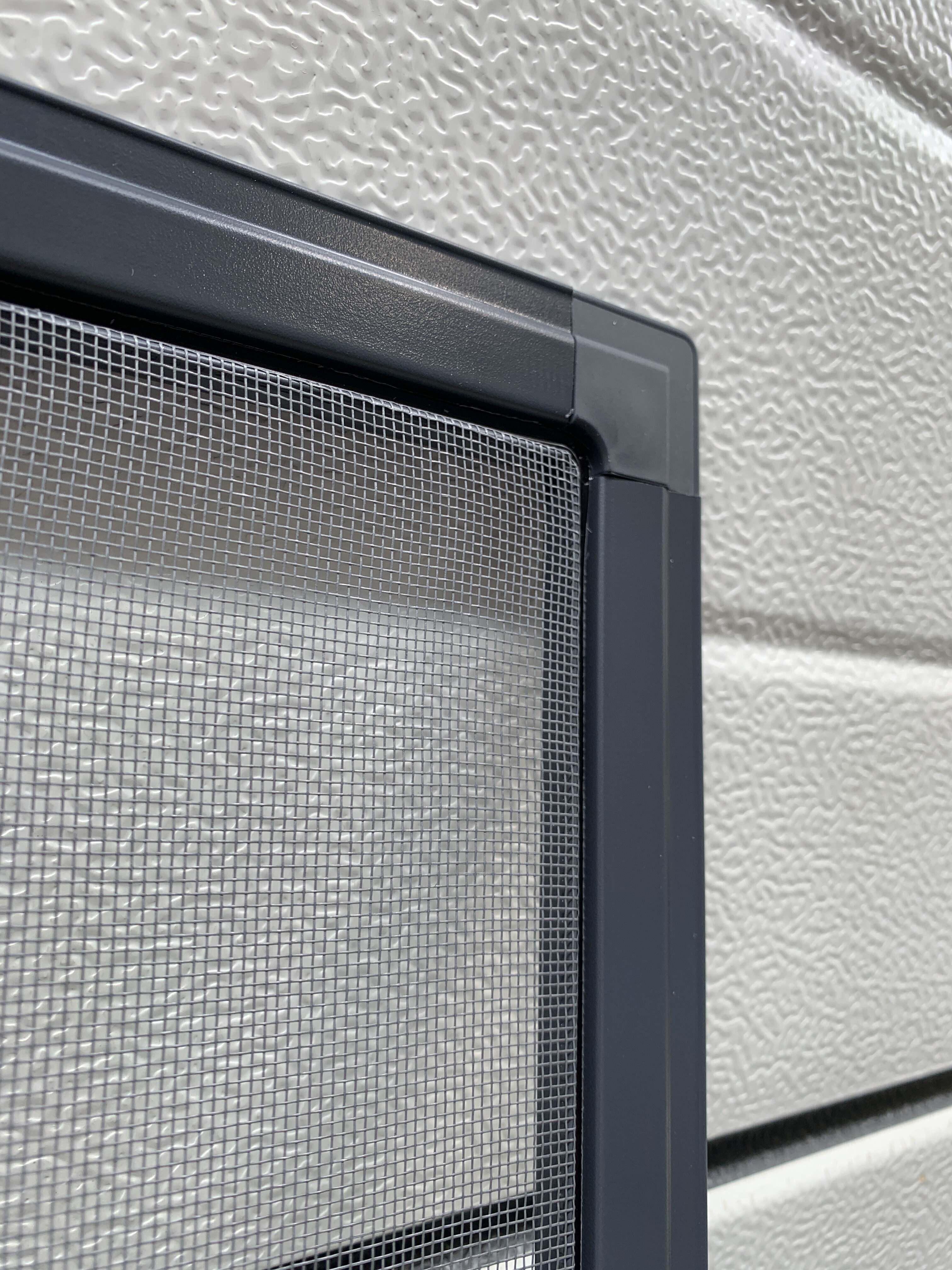

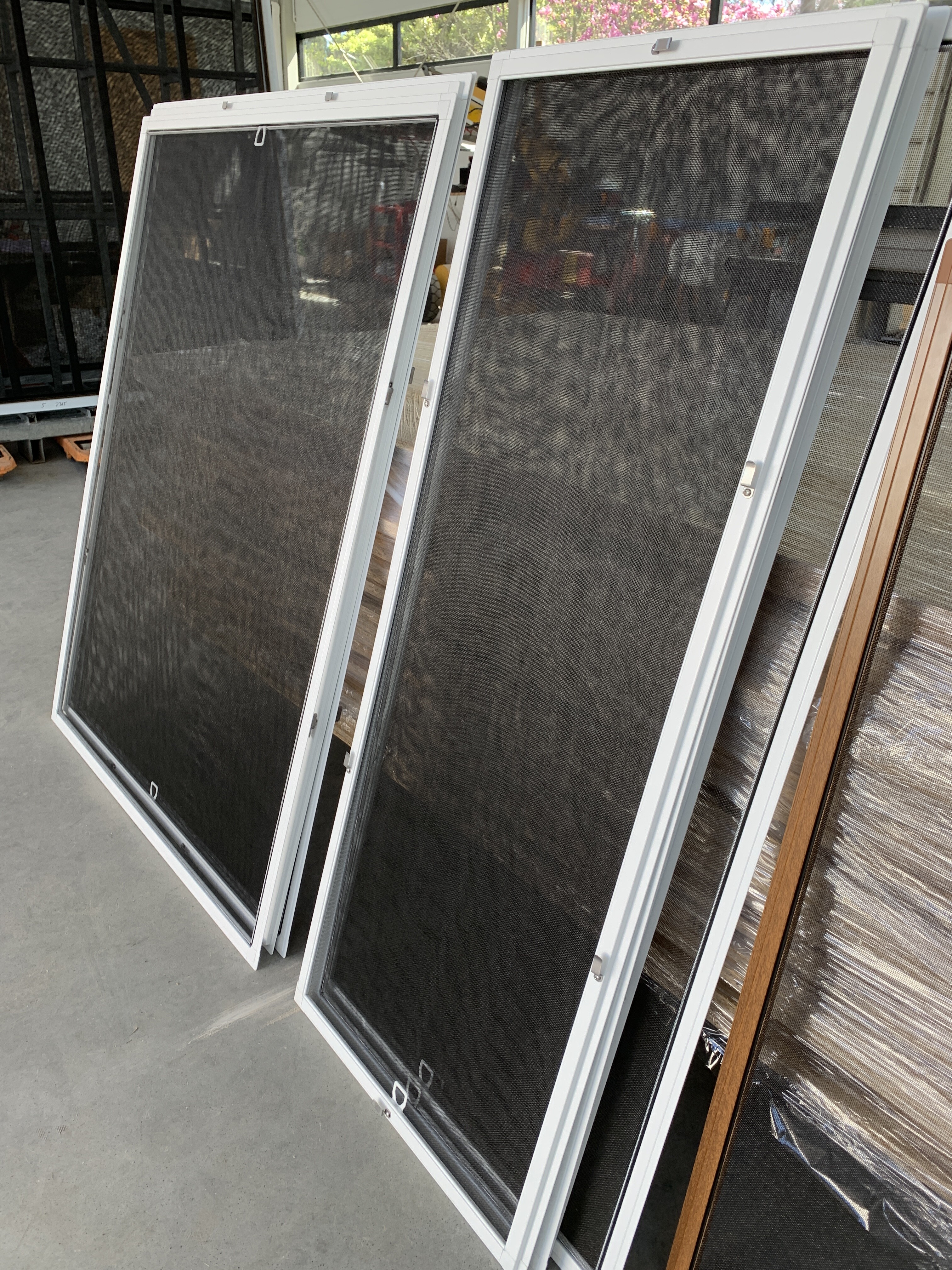

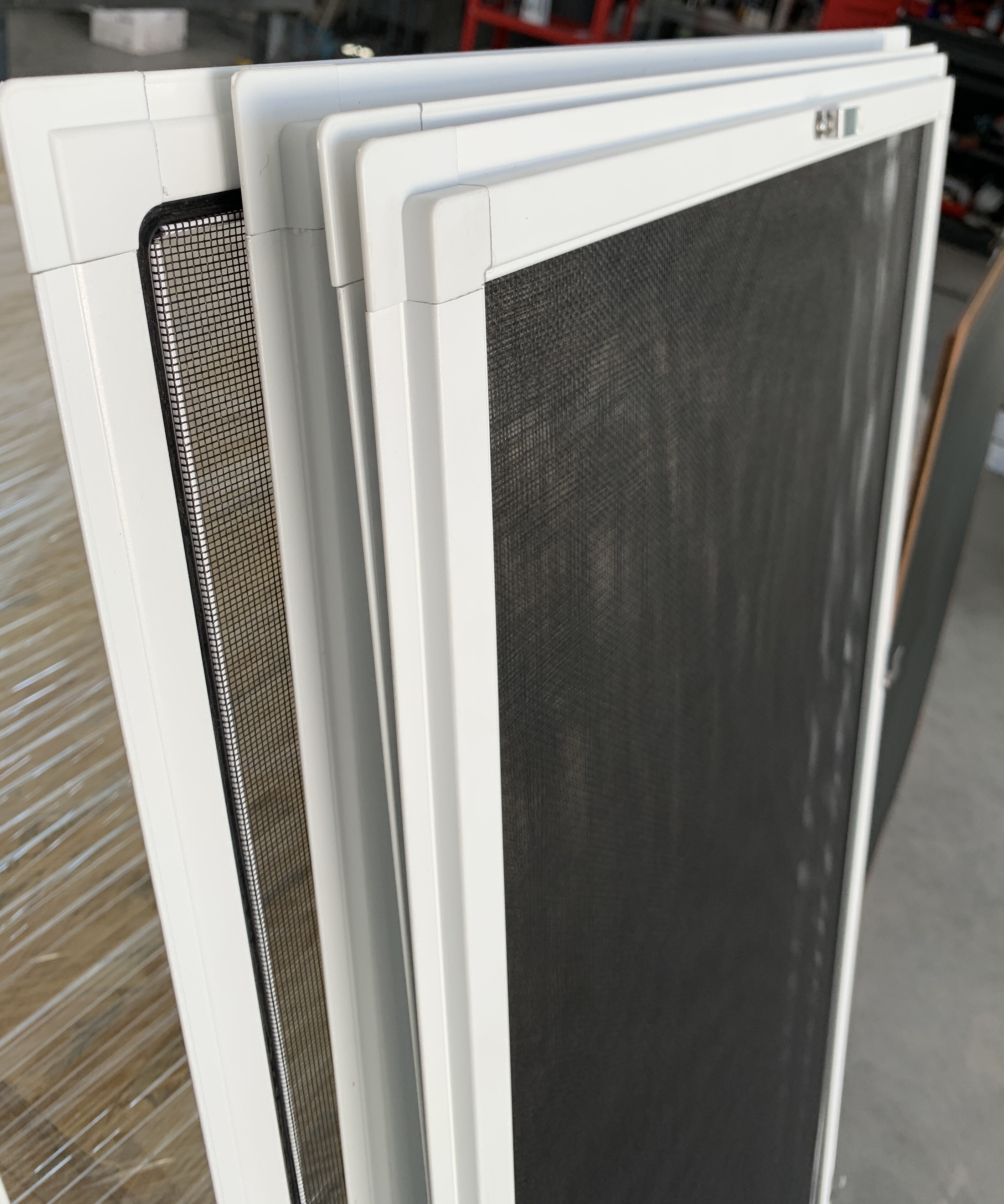

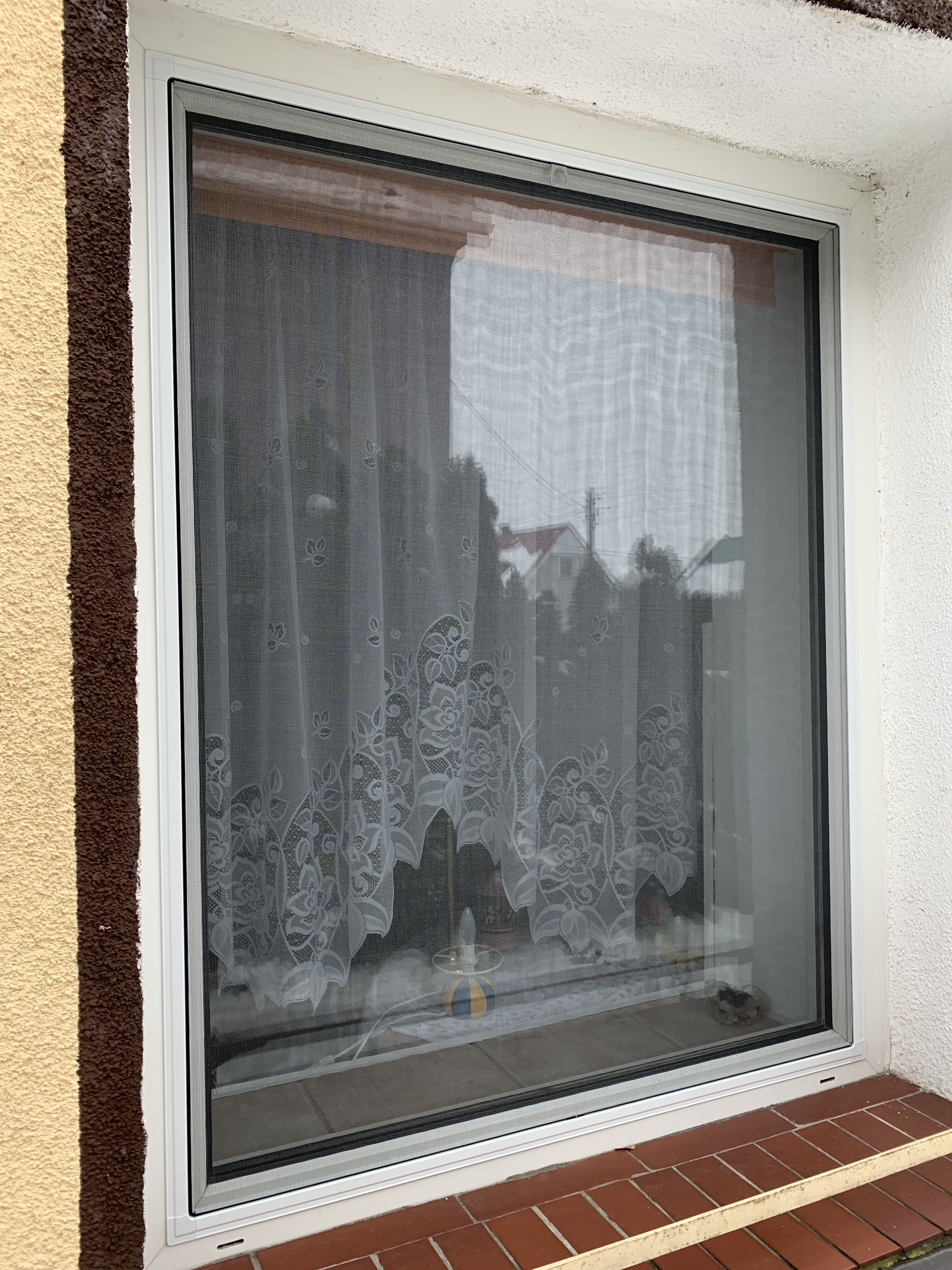

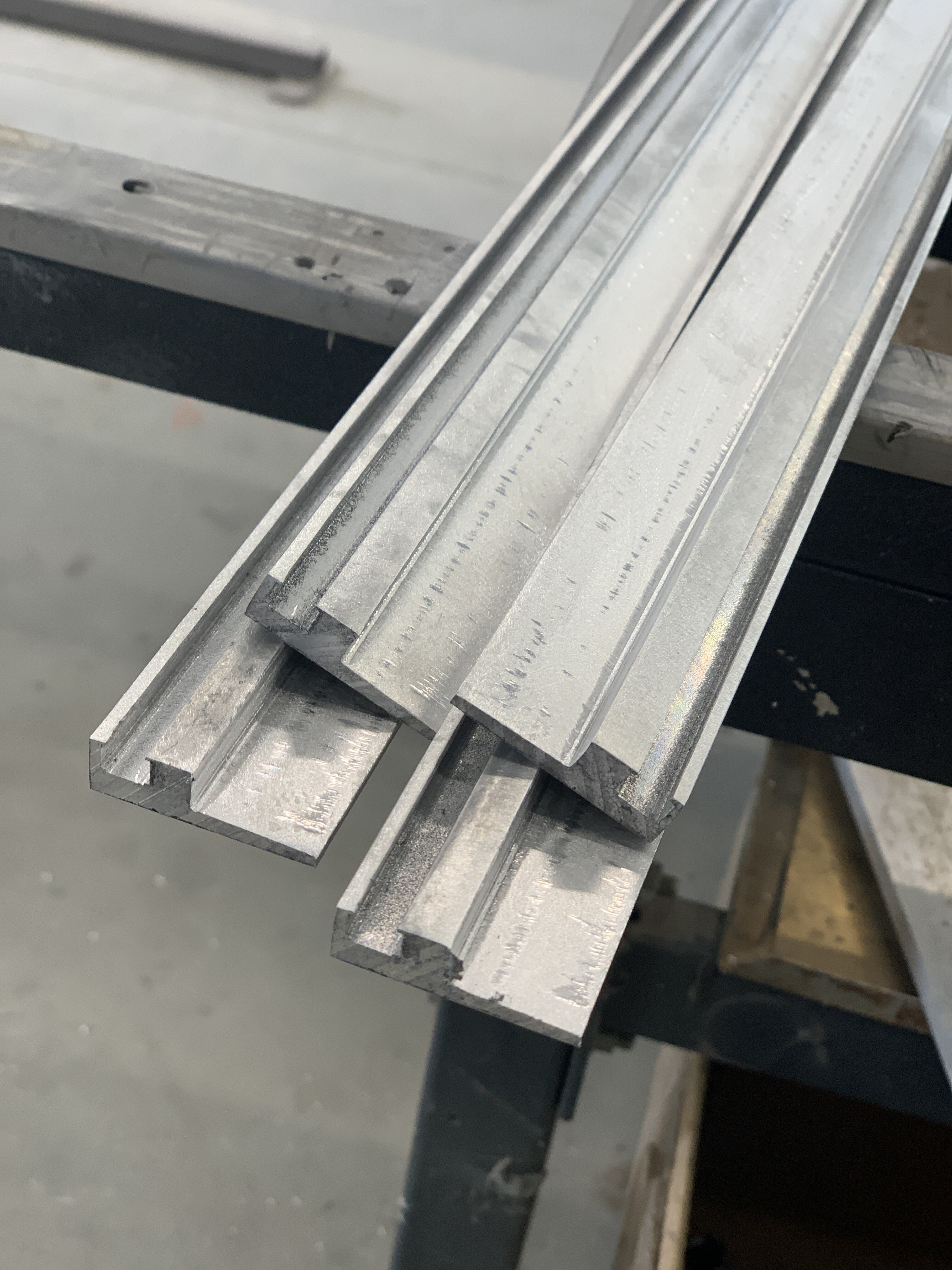

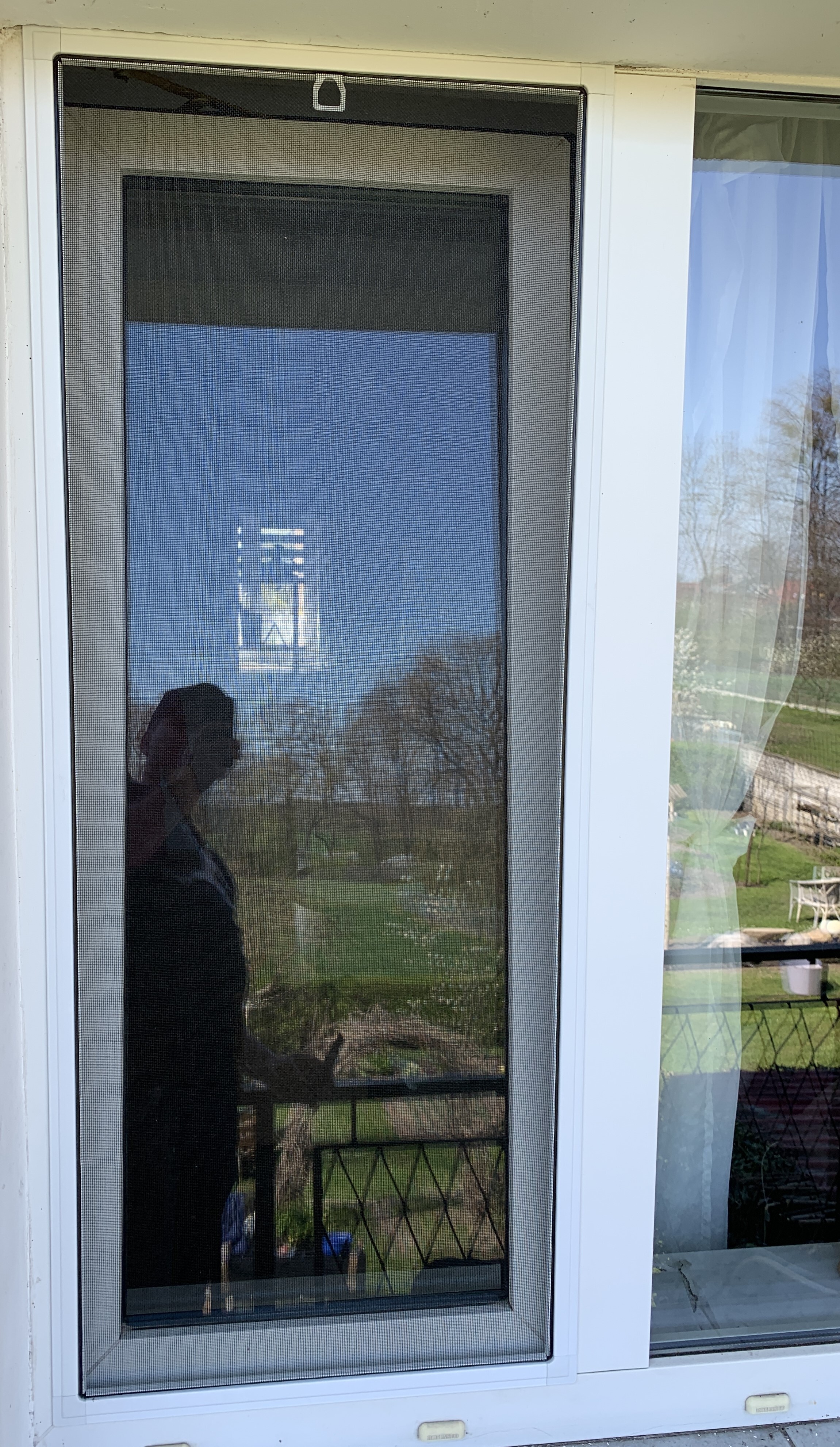

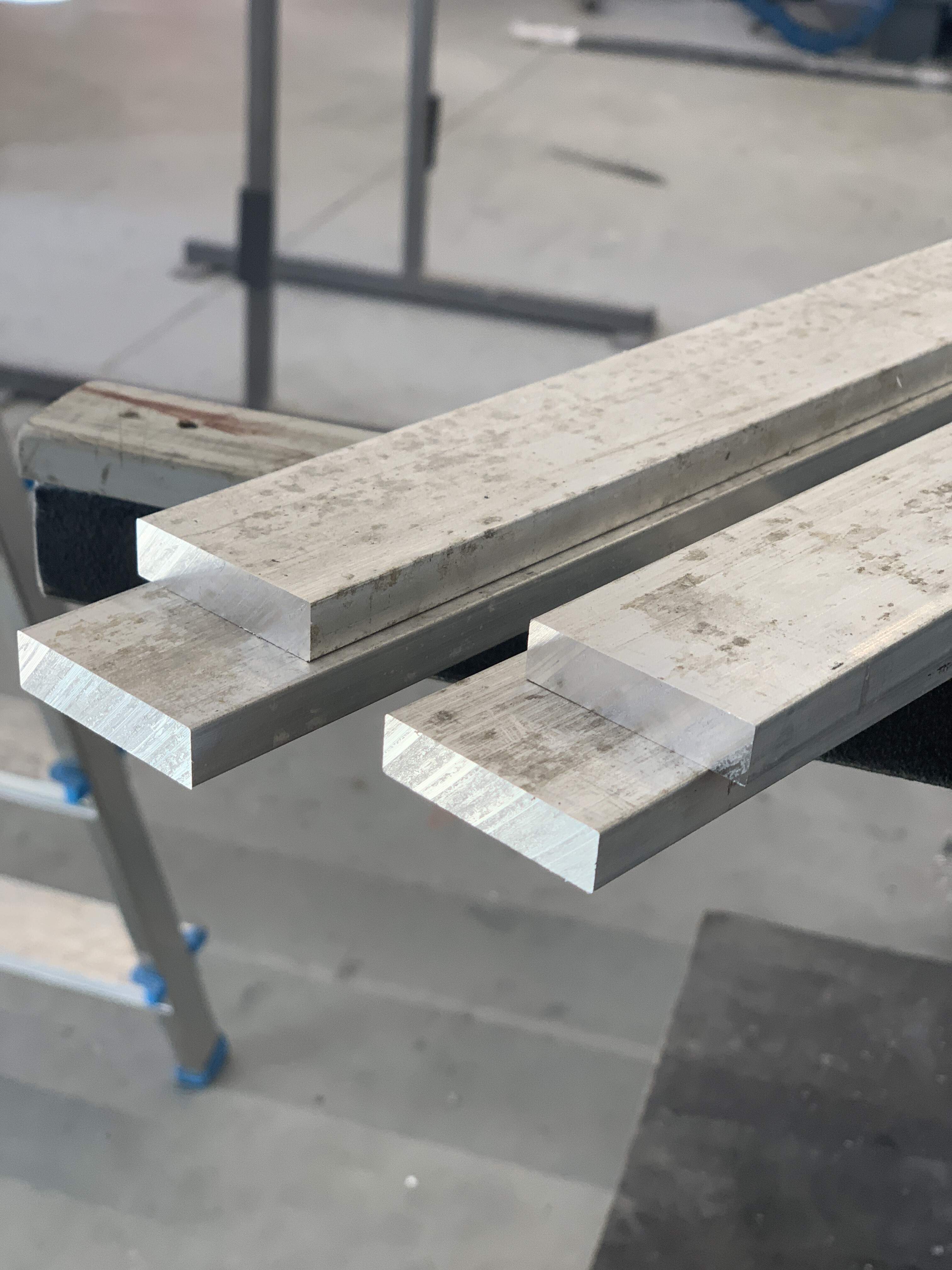

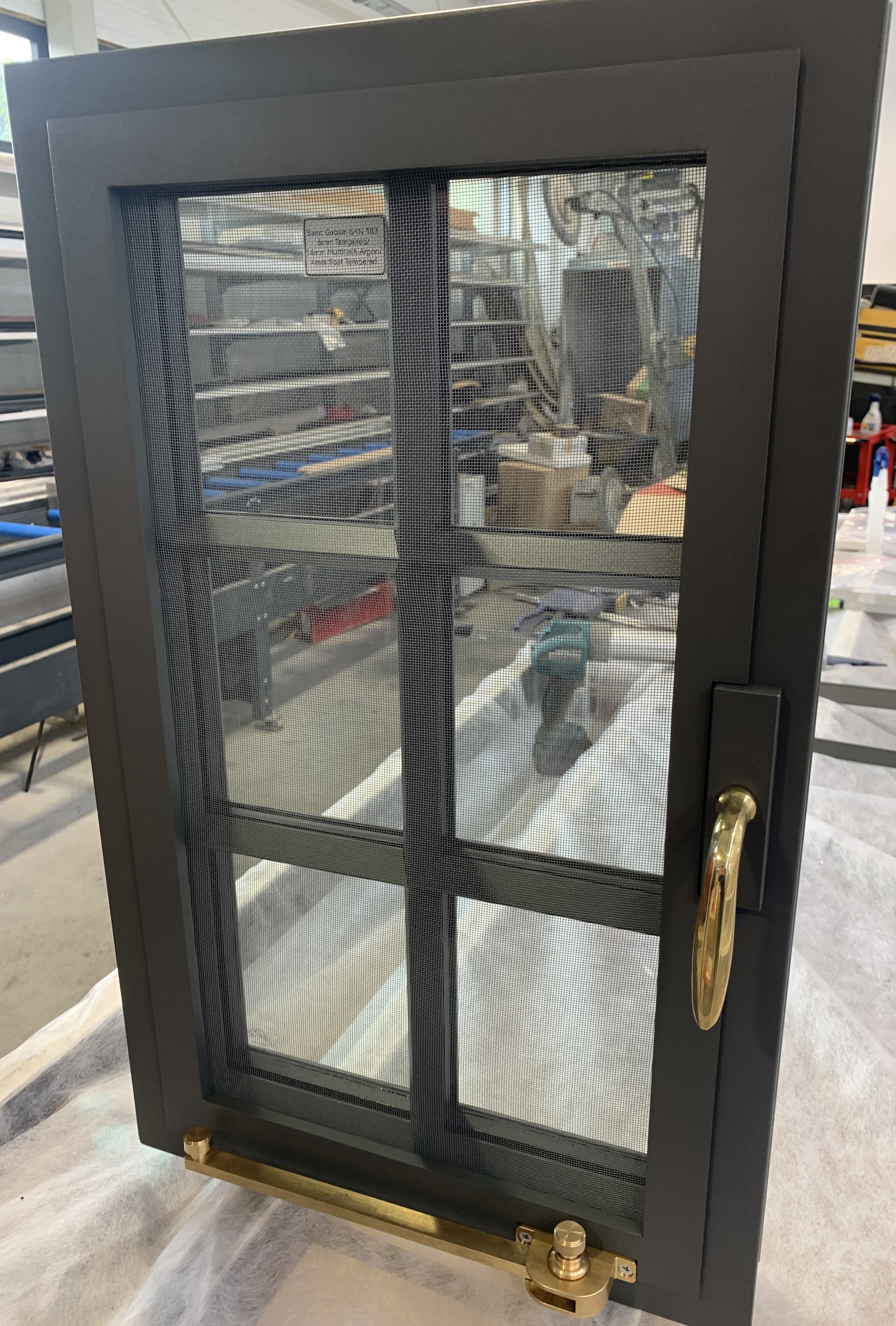

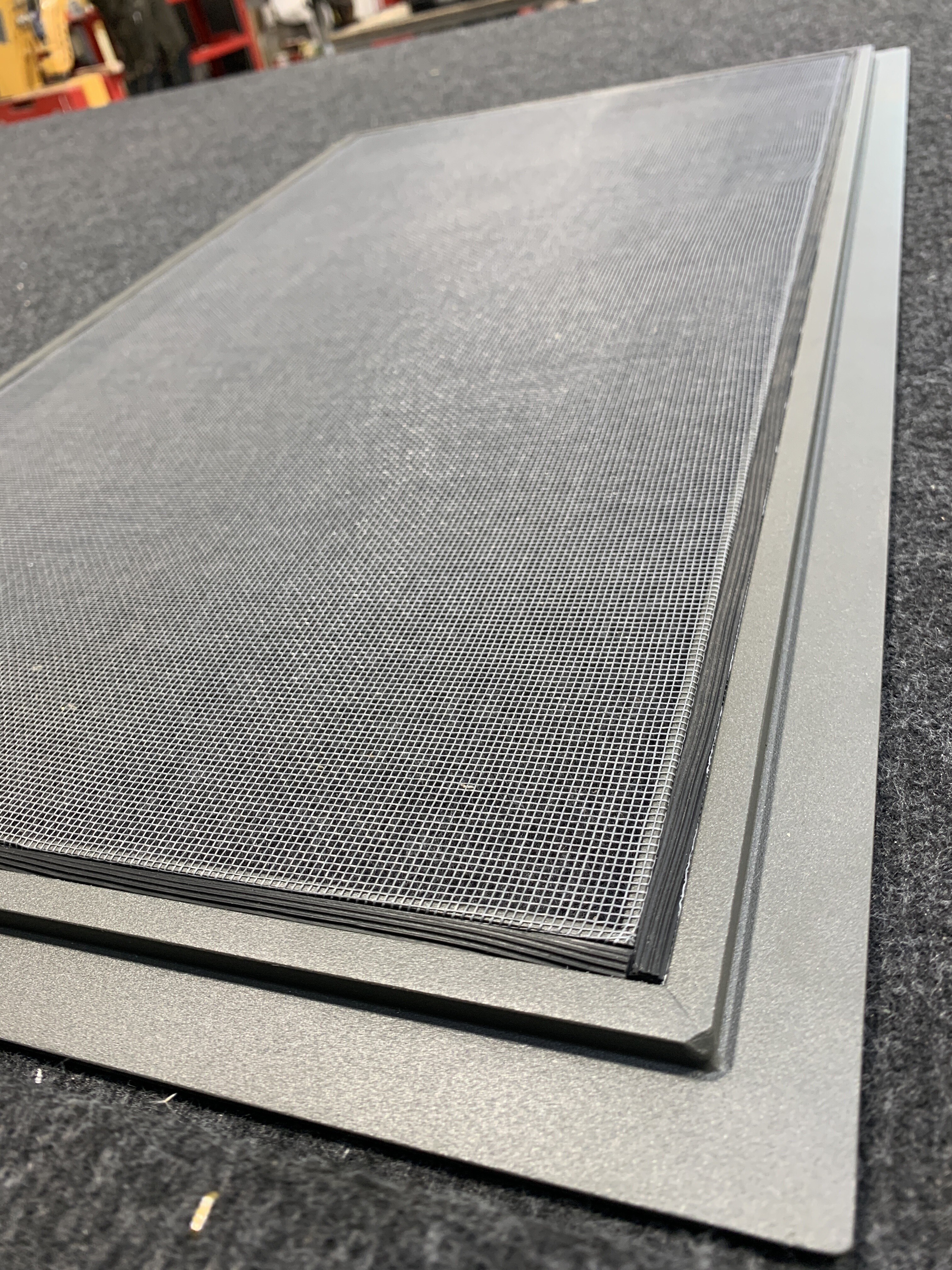

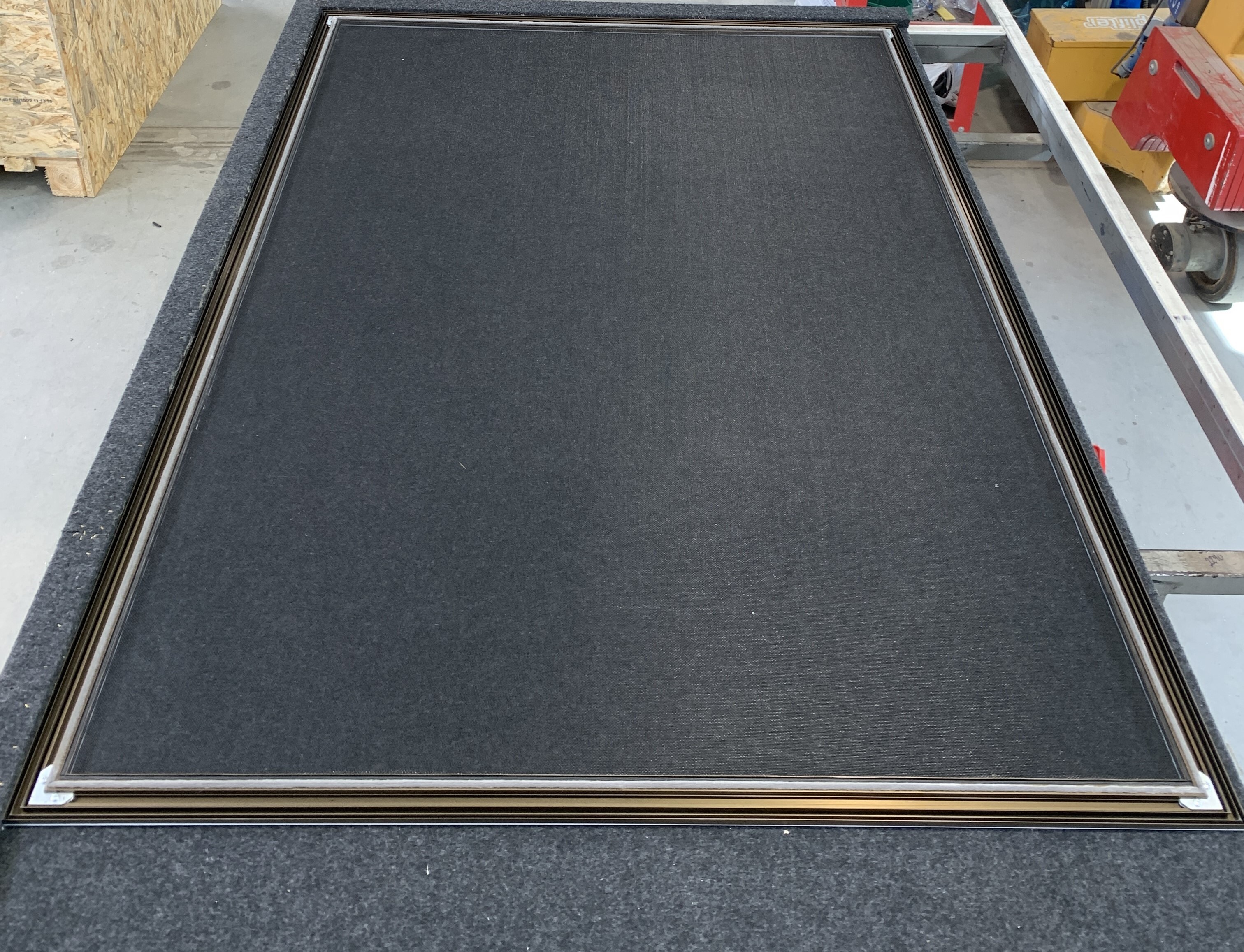

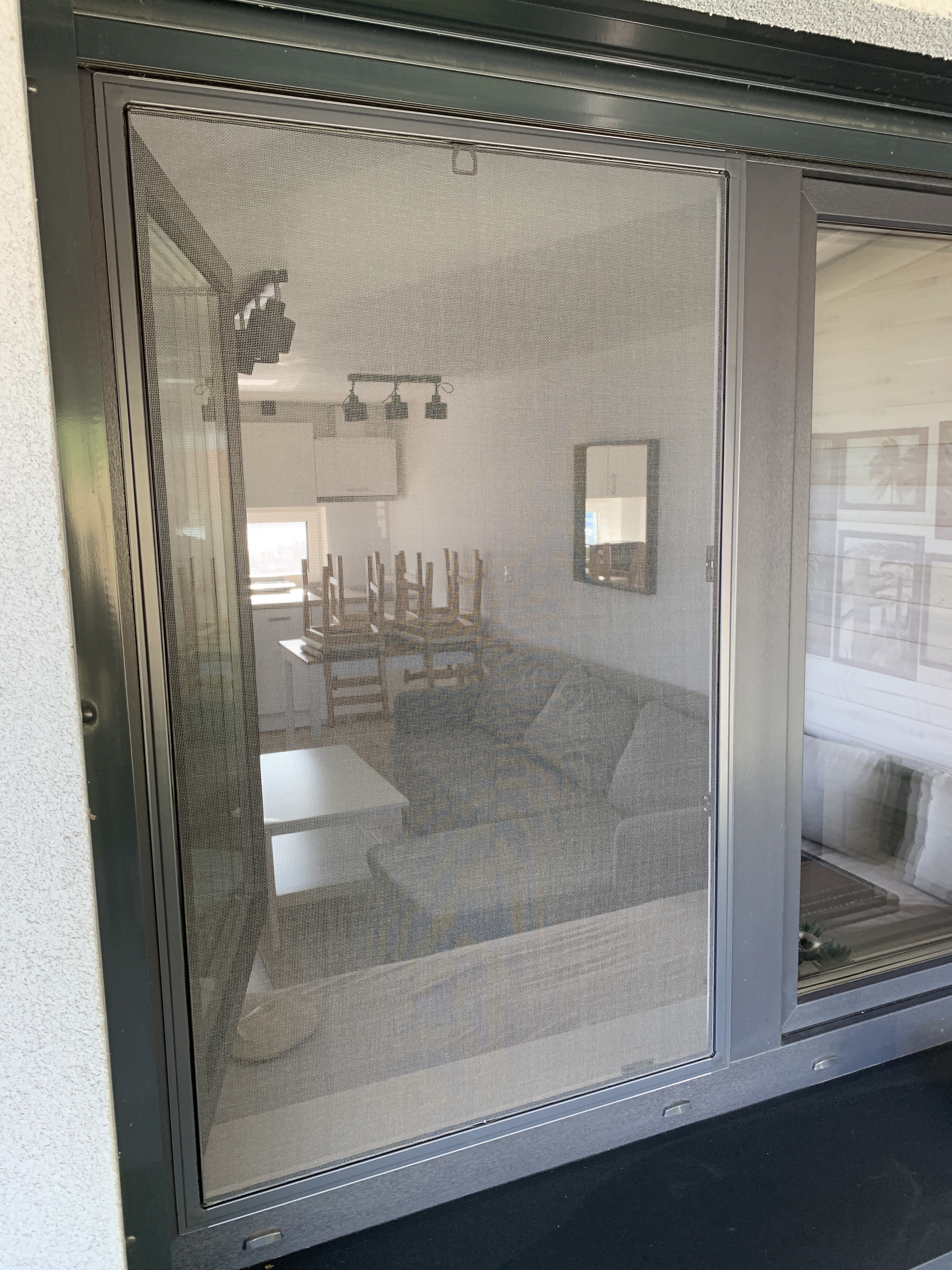

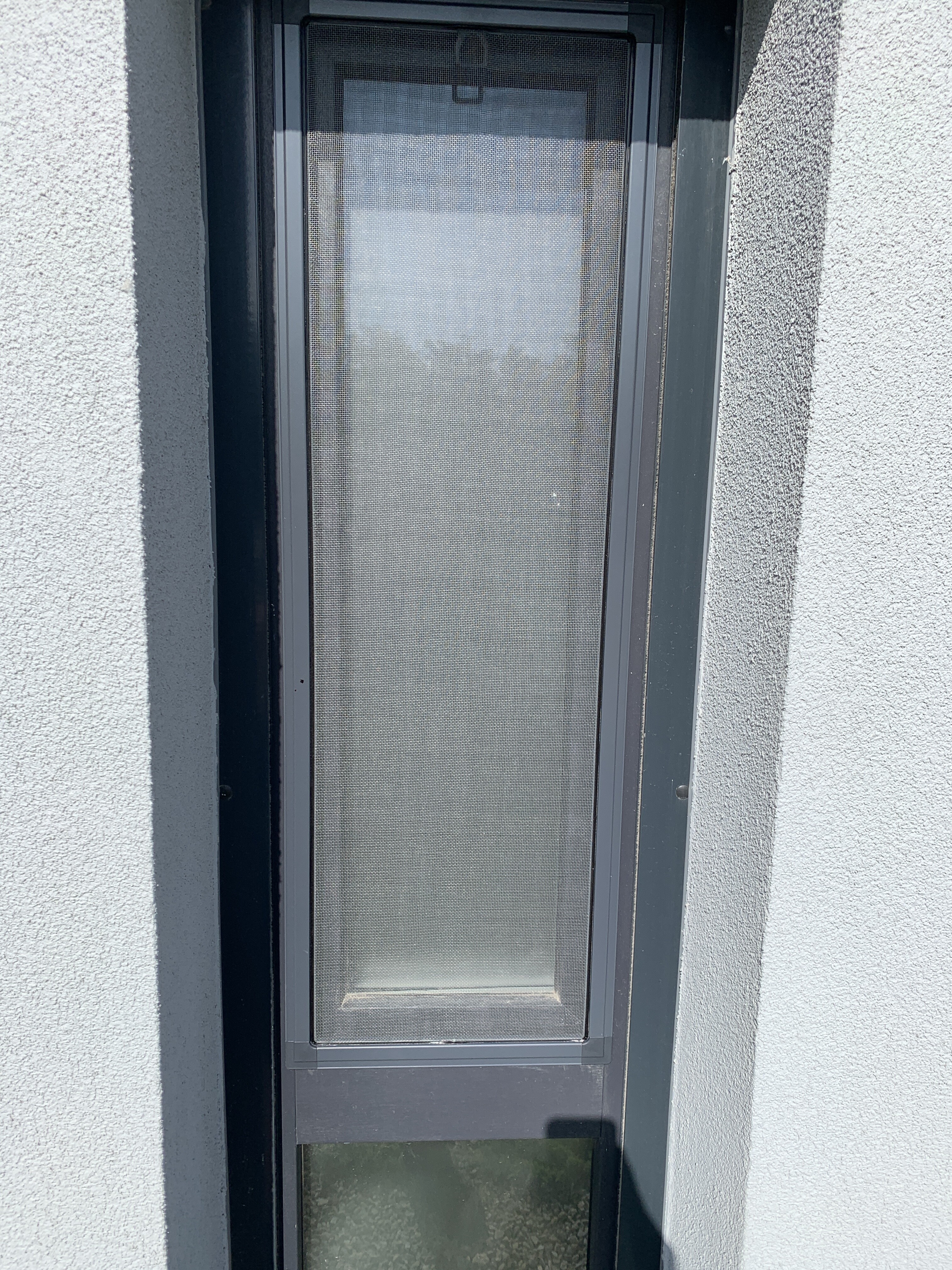

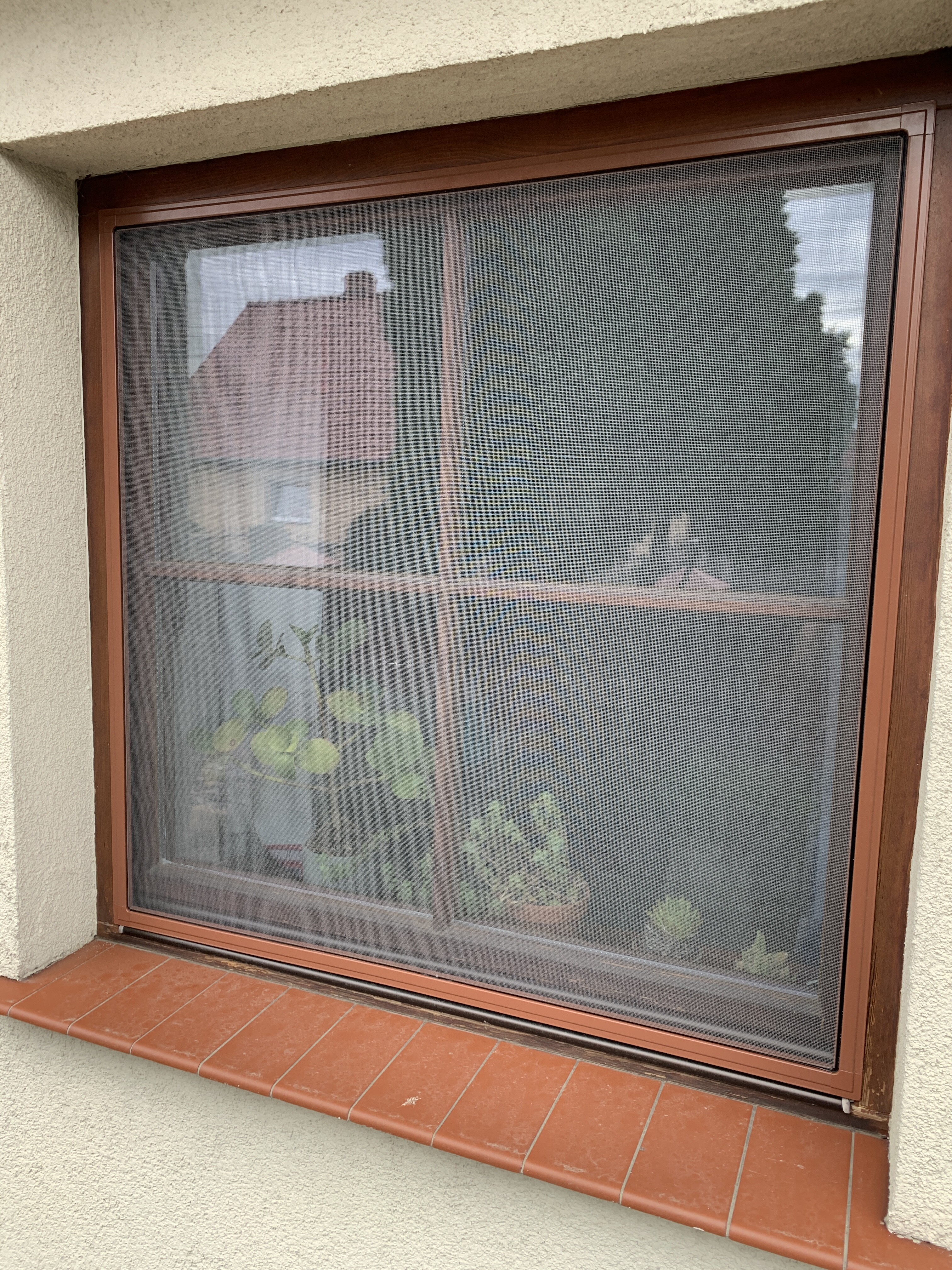

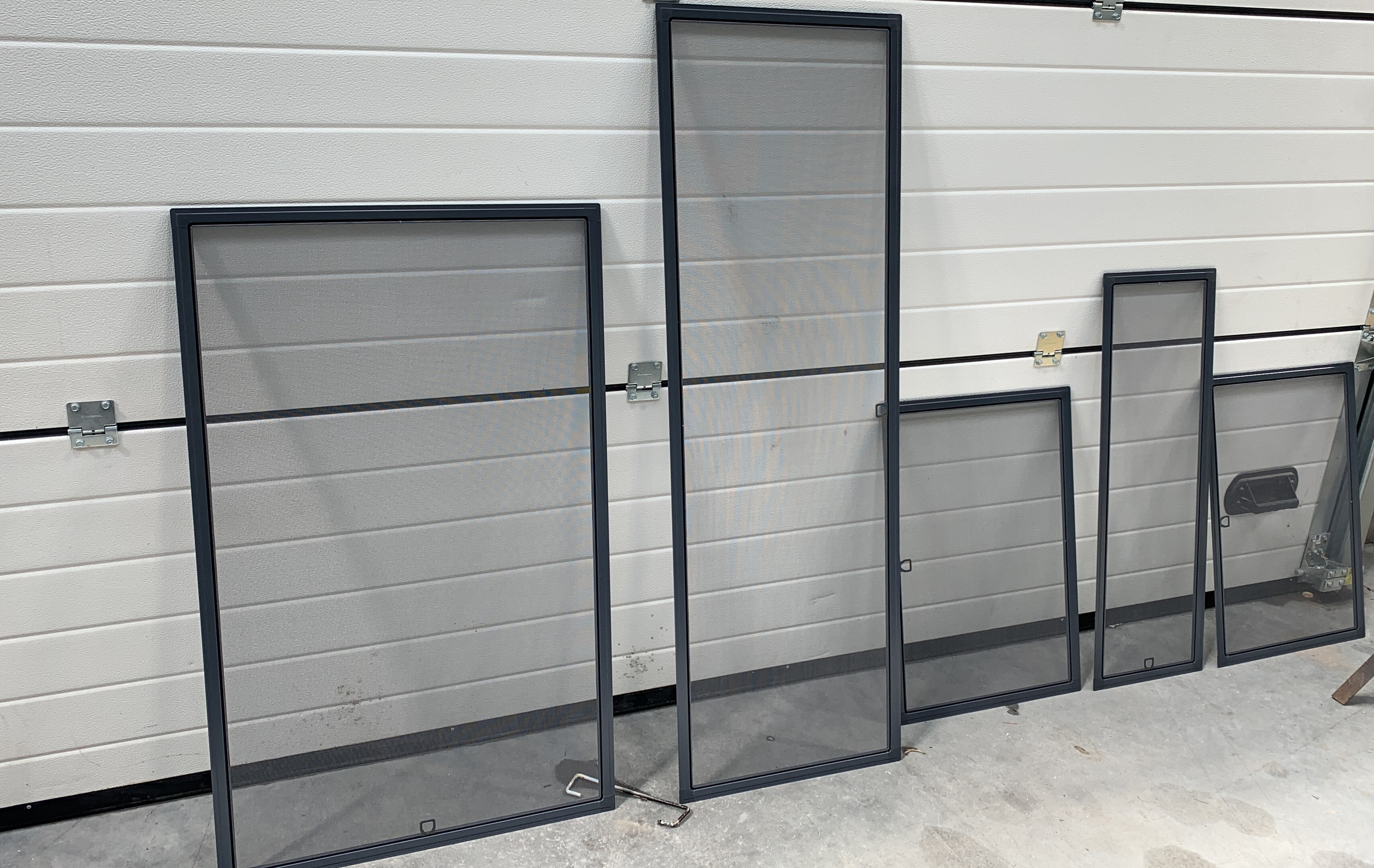

Made-to-measure insect screens

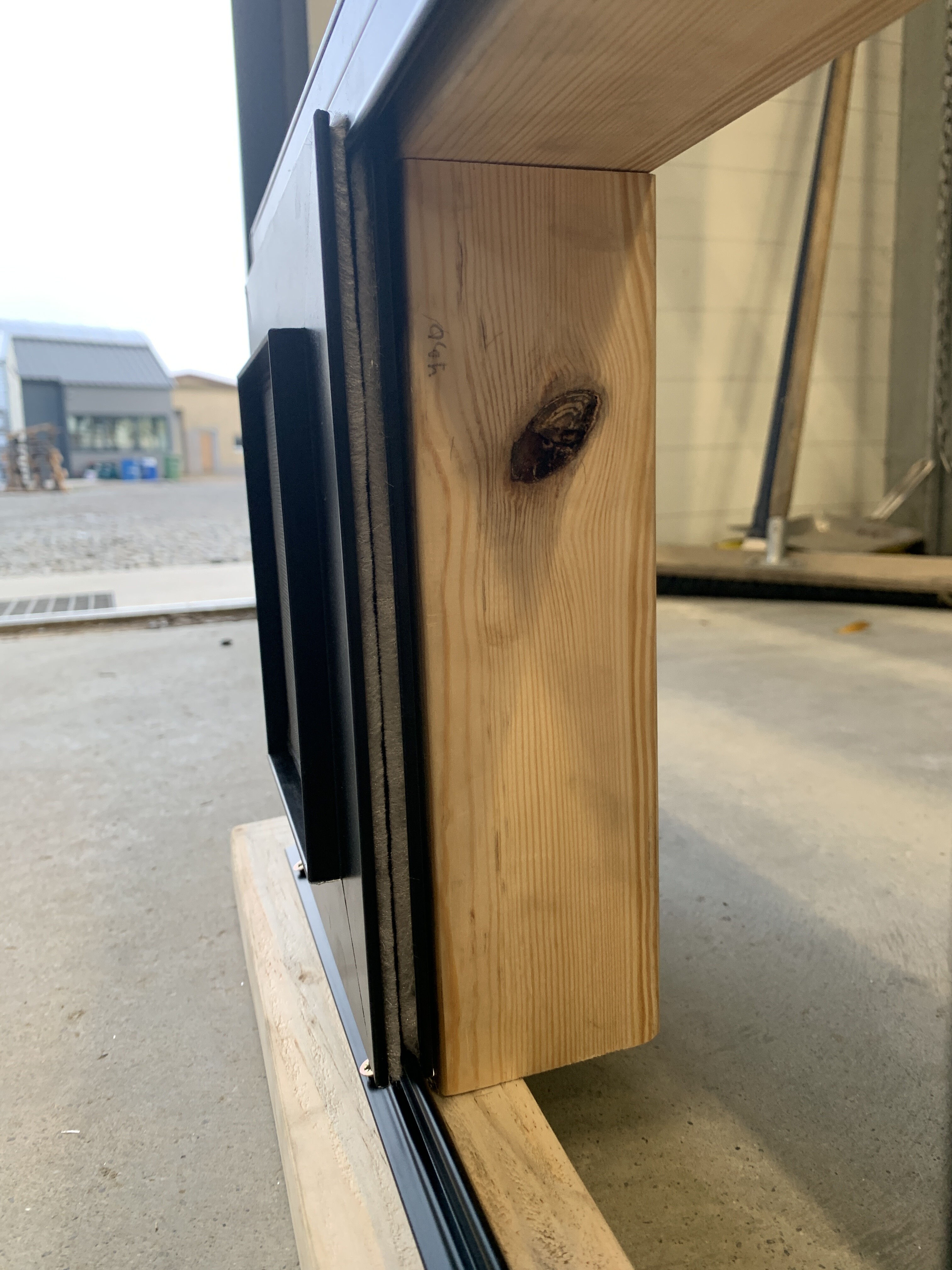

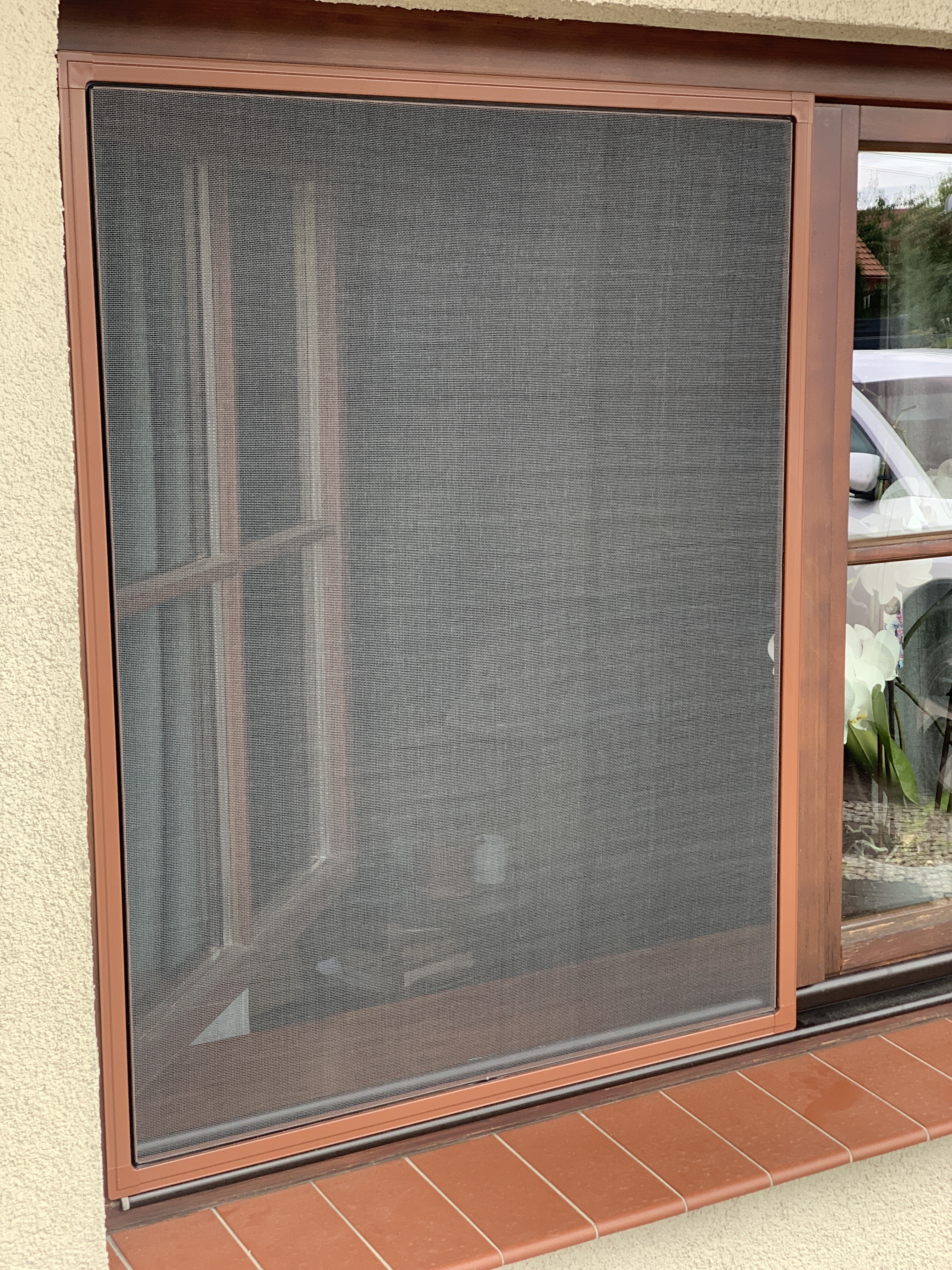

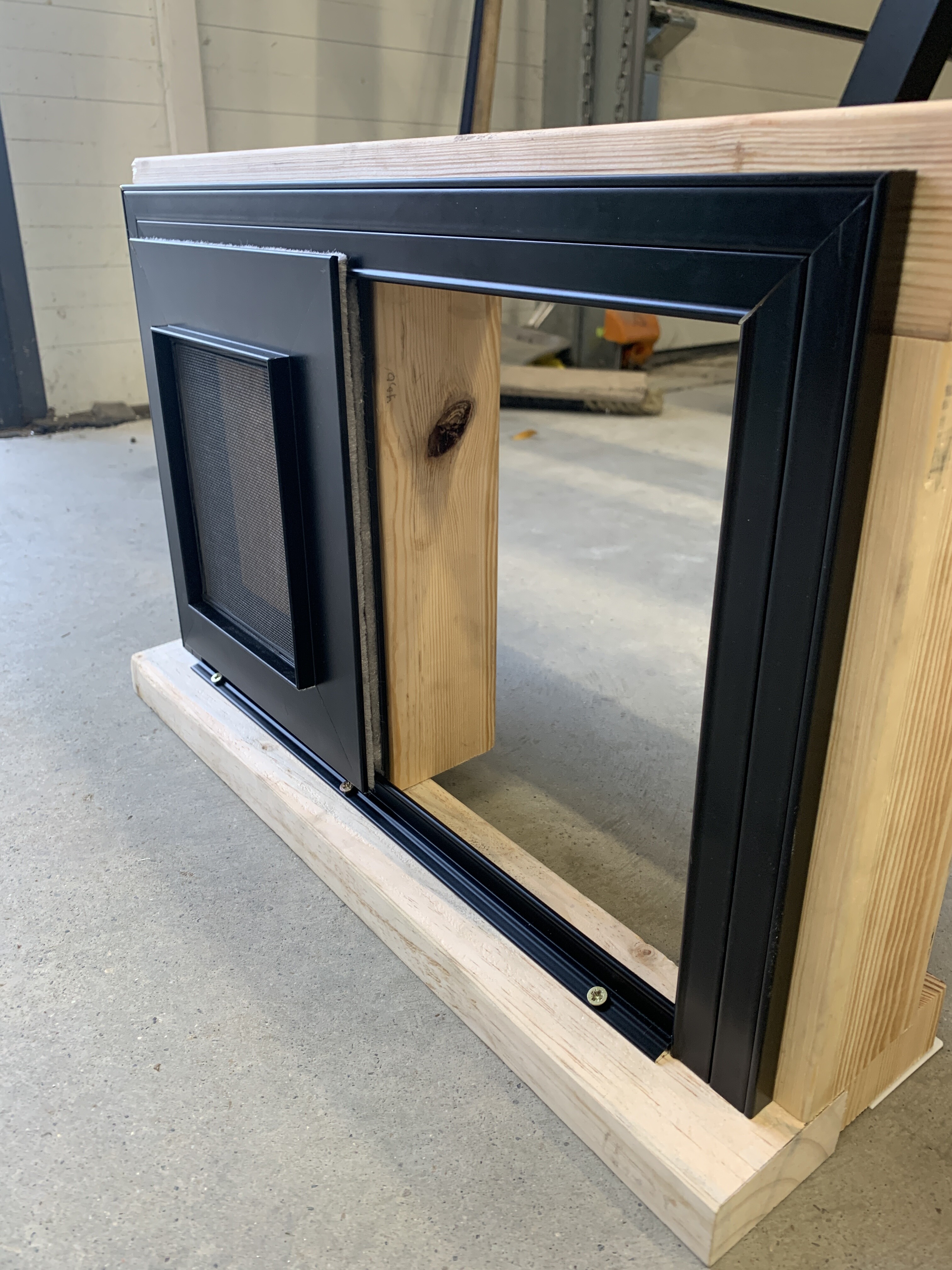

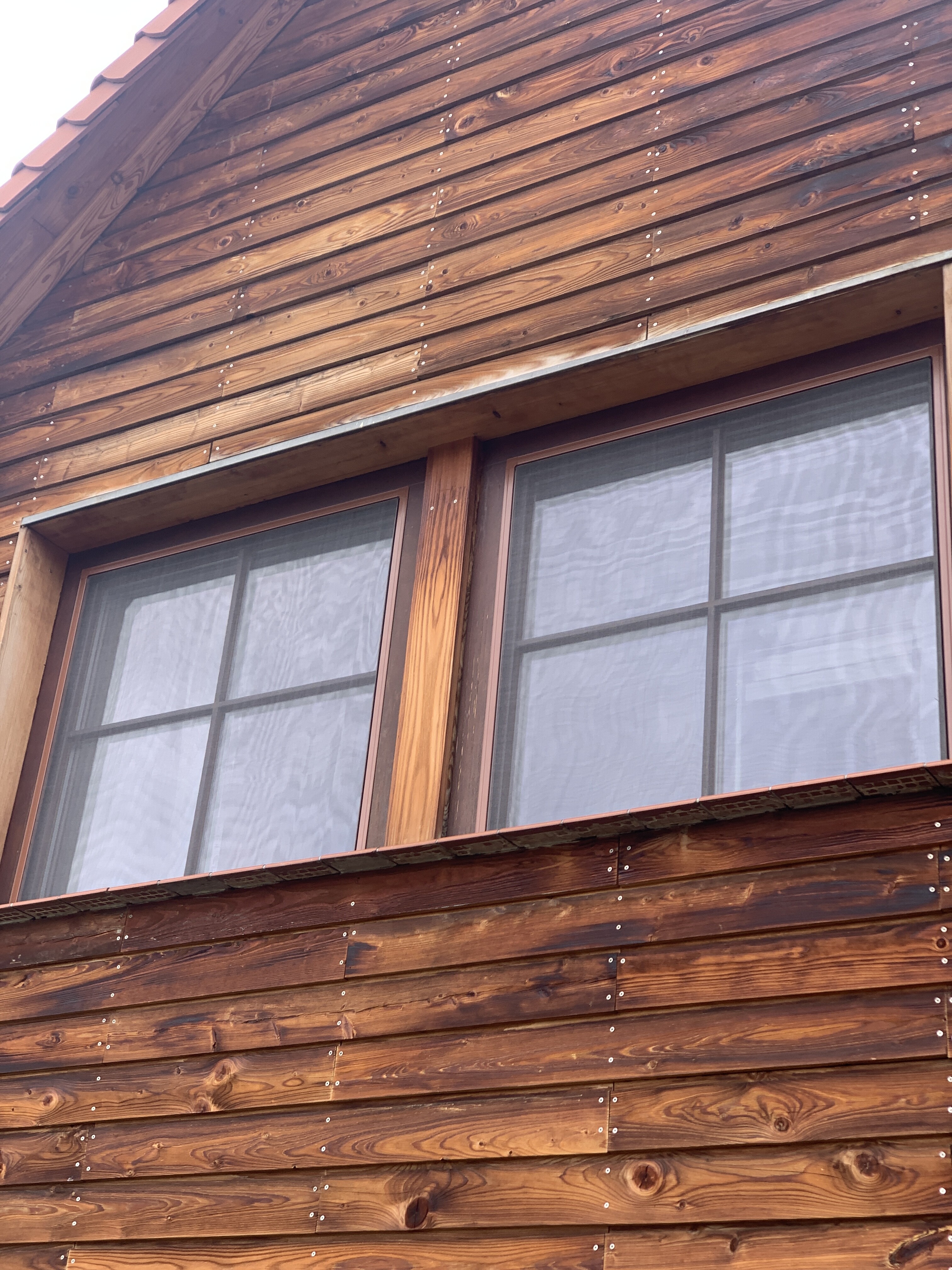

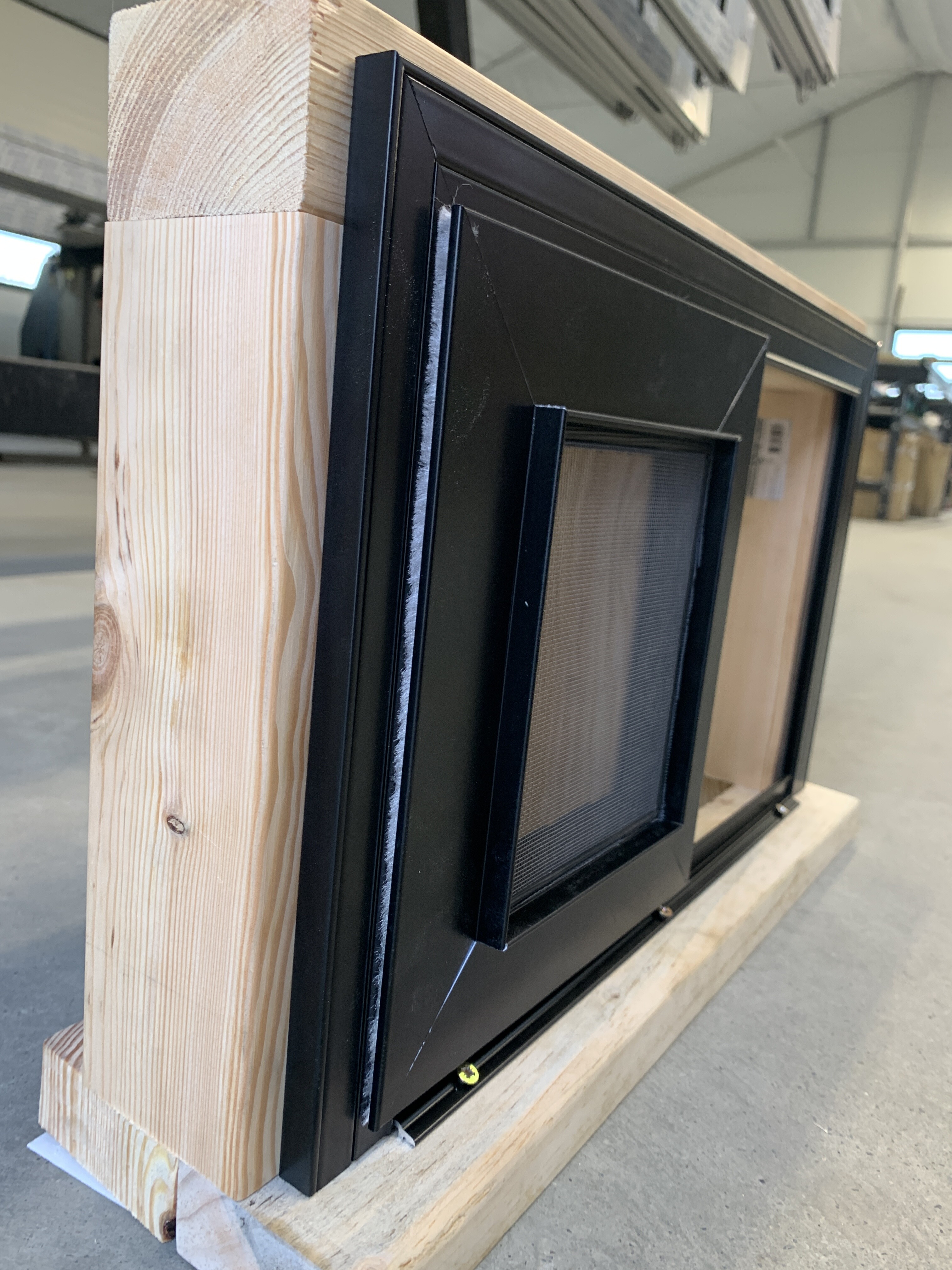

Fixed, sliding and pleated insect screens. Contact us to discuss suitable solutions, measurements and installation options.

Selected shop drawings

Elevations, sections and technical details from selected projects.

The experience behind SELF WINDOWS

Drawings backed by
real production experience.

Wojciech Szatanik · SELF WINDOWS View my LinkedIn profile ↗

I have over 12 years of experience in the window and door industry, including five years as Production Director for aluminium and steel windows.

My work combines technical drafting with a practical understanding of profiles, glazing, hardware and production. I work with US clients on residential and commercial projects, helping turn project requirements into clear technical documentation.

Through SELF WINDOWS, I offer shop drawings, technical support and coordination with European manufacturers, as well as help with window and door quotations and supply.

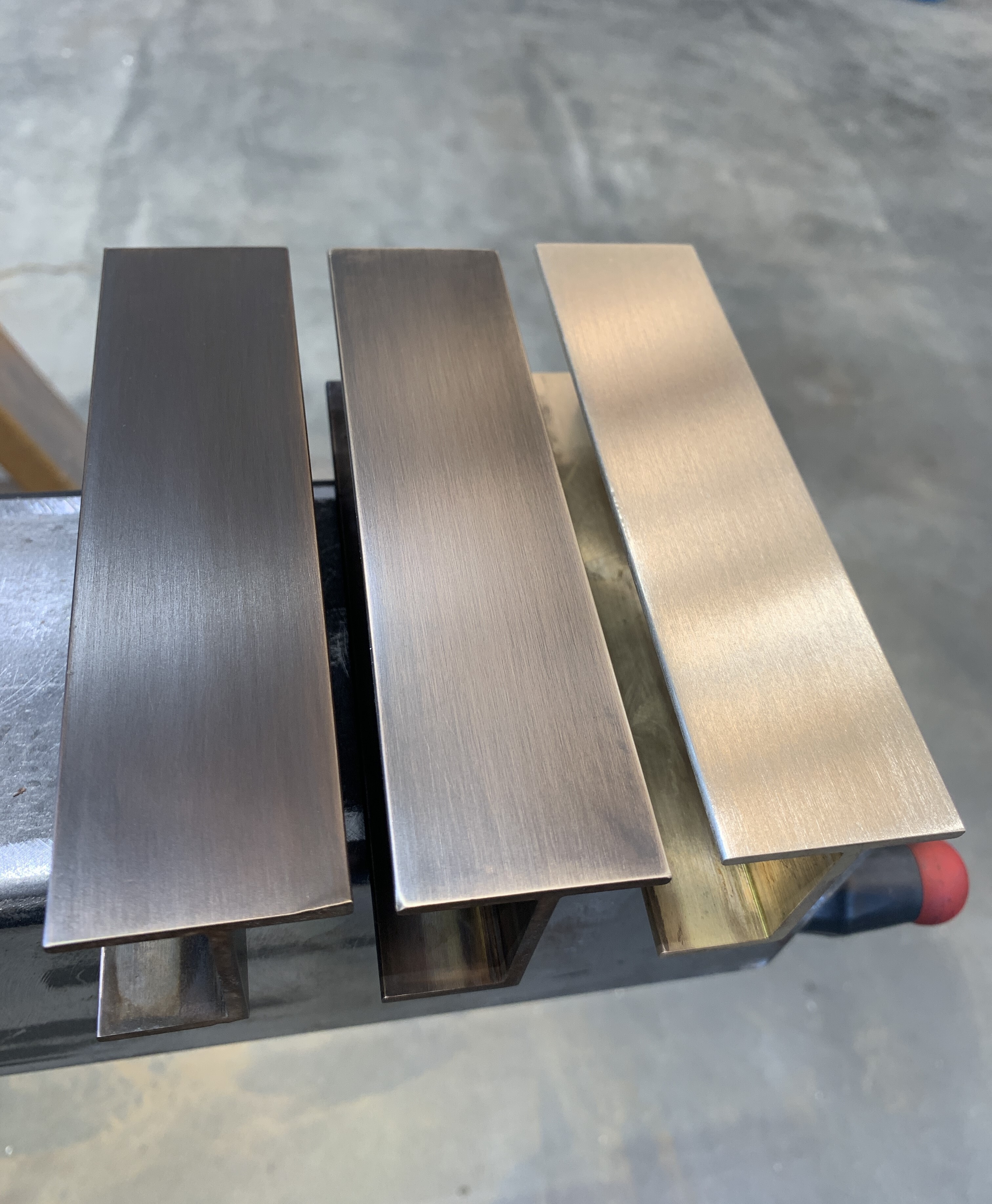

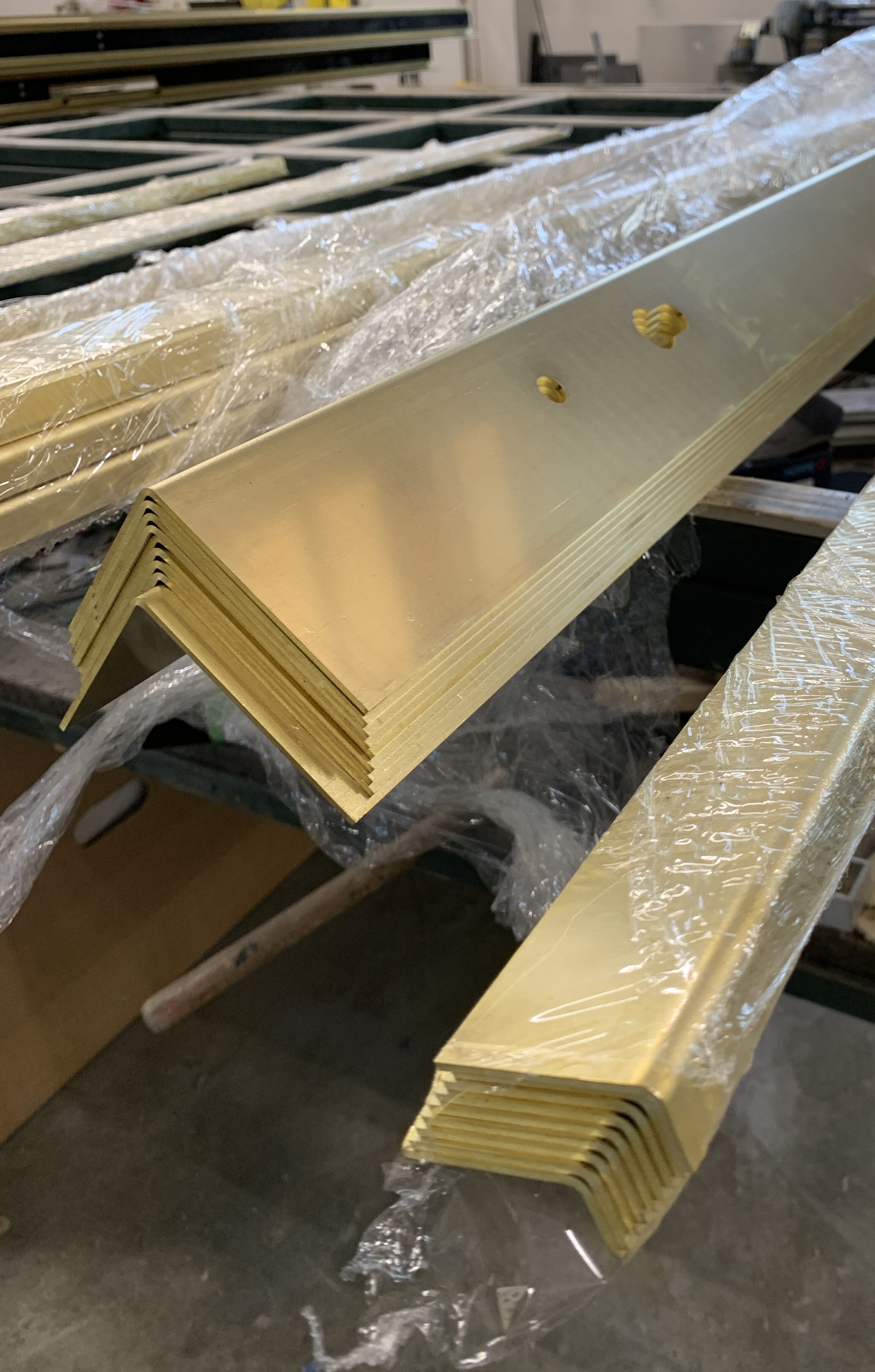

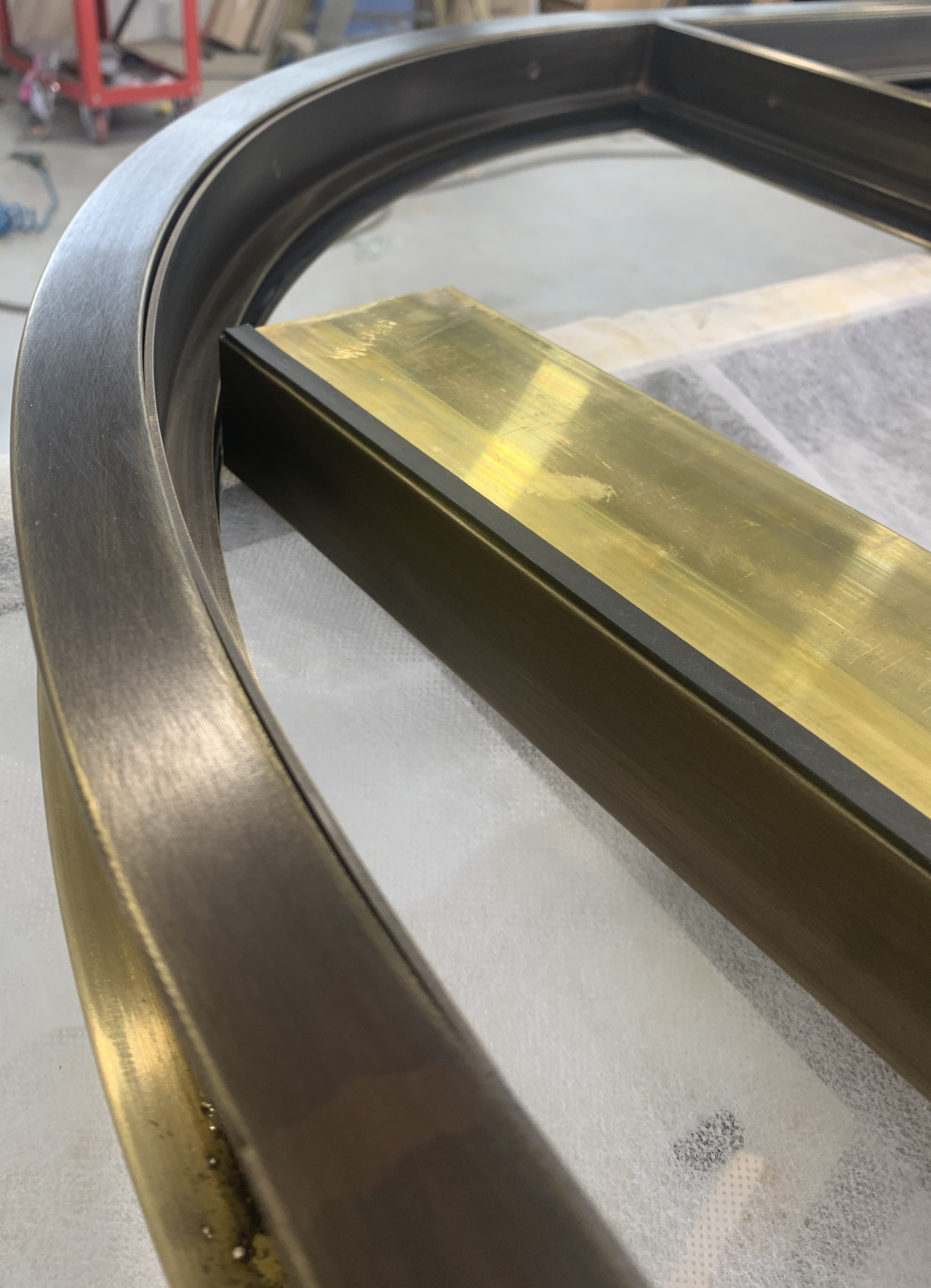

Materials · Products · Details
